200 Wiring Block  Patch Panel

l This product combines the easy terminaltion features of the 110-style Punch-down system with the proven performance

l characteristics of modular jacks.

l From the closed to the workstation,the 110 cross connect system offers a complete,cost-effective means to wire a buliding for

l unshielded twisted pair applications.

l Wall-mount 110 wiring blocks create compact, adaptable 110 termination fifield for voice and data by mounting 110 wiring bases to the wall or a backboard. Bases come in 25-,50-, or 100pair densities. The 50-pair bases may be ordered with or without standoff legs which provide more room behind the base for cable.

Feature:

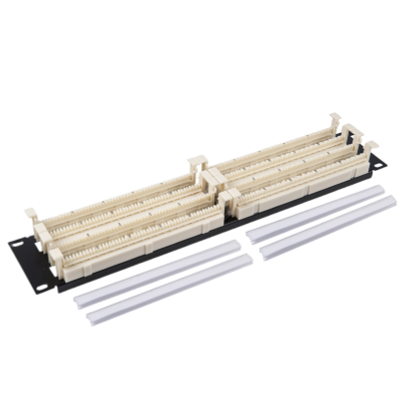

1.Type: 200 pair rack mount 110 wiring block

2.Available with legs or without legs to the wiring base

3.Easy to adjust, easy to embed wires in

4.Wiring blocks are designed to support voice and high-speed data Application 5.Offering a reliable and economical high-density system

6.The terminal blocks accommodate 22-26 AWG with a insulation diameter of 0.4-0.64mm

7.IDC contract material: phosphor bronze with tin plating over nickel

8.Available with T568A.T568B wiring pattern
