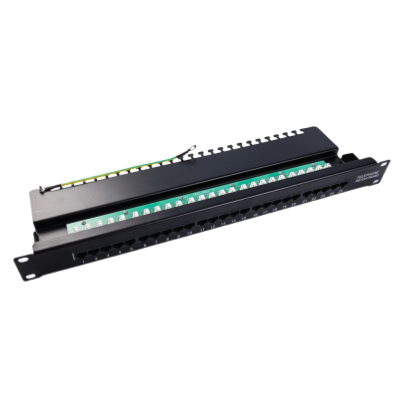

Cat3 25Port Patch Panel
Category£ºCat3 6P4C
Port£º25 port
Contact£ºPC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U"/0.0762um to 50 U"/1.27um Gold plating on contact area
Color£ºBlack
Termination£ºDual IDC
Product Size£º19 inch, 1U
IDC£ºPC UL94V-0, Accept 22-26 AWG Solid Wire
Standard£ºISO/IEC 11801 and EIA/TIA-568Bstandards
|
Panel fitting Type |
Rack mountable |
|
Panel Width |
483mm (19¡±) |
|
Panel Height |
1U 44.45mm Max. |
|
Panel Depth |
25 & 50 port 122mm Nom.. |
|
Material |
Black electrostatic powder-coated corrosion-resistant steel |
|
Outlet Style |
RJ11 or RJ12 |
|
IDC |
Dual IDC (LSA or 110) |
|
Color |
Black |
