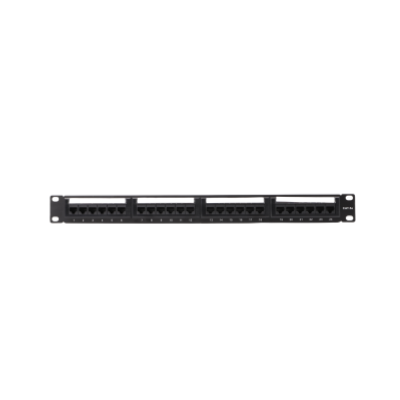

UTP 24Port Cat5E Patch Panel
l 24 port patch panel supports for 10-Gigabit Ethernet, made for Cat 5E cabling. Use included cable ties for easy cable management
l 24 PORT CAT5E PATCH PANEL is ideal for Ethernet, Fast Ethernet and Copper Gigabit Ethernet (1000Base-T) network applications. * Meets ANSI/EIA/TIA 568-B.2-1 and ISO/IEC 11801 Standards*
l GOLD PLATED CONTACTS Ensure a solid connection Install this Rj45 Network patch panel without any effort in universal 19" racks, cabinets, or wall mount brackets with 1U (1.75") standard height. Numbered ports and color-coded T568A and T568B diagram for quick and easy installation.
l COLOR-CODED LABELING for T568A and T568B wiring schemes 180¡ã angle type (horizontal) 24port cat5e patch panel . NEW VERSION 110D IDC type terminal blocks (use 110 or Krone type tool).
|
Product Description |
|
|
Application |
Certification:ISO9001,CE,RoHS |
|
Standard:ISO/IEC-11801;ANSI/TIA-568-C.2; EN50173-1 ;ANSI/TIA¨C1096-A (FCC Part68);
IEC 60603-7 |
|
|
Wiring Standards£ºT568A/T568B |
|
|
Application: for home ,hotel, office and buildings network wiring |
|
|
Specification |
Material: *Panel:SPCC 1.5mm *Housing:PC/ABS *Spring Wire: Phosphor Bronze with
Gold-plated 3u-50u" *IDC Contact:Phosphor Bronze with tinned |
|
Working life: 750 times Min for RJ45 jack; 200times min for IDC |
|
|
Current Rating£º1.5 Amps |
|
|
Contact Resistance:2.5m¦¸ max |
|
|
Insulation Resistance£º500m¦¸ minimum |
|
|
Dielectric Strength:1000V RMS at 60Hz for 1 minute |
|
|
Flammability rating:UL 94V-0 |
|
|
QC:100% broken circuit testing |
|
|
Humidity:10% ~ 90%RH |
|
|
Temperature:-20¡æ~ 60¡æ |
|
|
OEM / ODM:Available |
|
|
Feature |
*Unique design is essential to manage any additions, and changes efficiently and effectively.
*The front identification design can be ease to identify the port and manage the wiring. |
