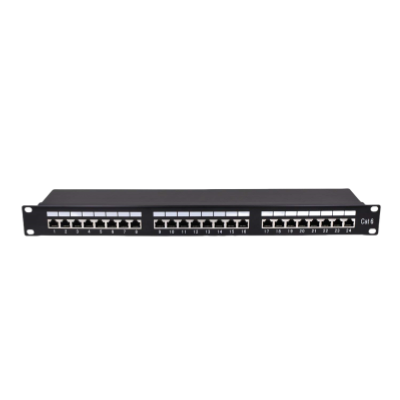

STP 24Port CAT6 Patch panel
l *8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times
l * Flame retardant: injection molded with PPO+PC to meet international standards
l * Contact resistance: no more than 2.5m¦¸ under normal atmospheric pressure (without body resistance)
l *Insulation resistance: not less than 1000M¦¸ under normal atmospheric pressure conditions
l *Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute
l *Standard: Designed and manufactured according to international standard ISO/IEC11801; TIA/EIA568
Features:
1. Front Panel: 1.5mm thickness metal, panel(SPCC), painting on surface
2.Metallic Frame: 1.5mm thickness
3. Housing material: ABS or PC, UL94-V0 or UL94-V2
4. Meet or exceed the current T568A and T568B standard
5. Termination: Dual IDC, 110 IDC, Krone IDC
6. Panel frame: black or Ivory electrostatic powder-coated steel
7. IDC contact material: phosphor brone with tin plating over nickel
8. contact material: phosphor brone with gold plating over nickel
9. Punching duration:¡Ý250 times
10. Inserting duration:¡Ý750 times
11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
12. Insulation Resistance: 500M-ohm
13.High reliability and superior performance.
|
Product Type |
Shield FTP Network Patch Panel |
|
Color |
Black, Optional |
|
Material |
Support Bar : SPCC, 1.5mm thickness with optional color |
|
Connector |
RJ45 Female |
|
Application |
Home, commercial building, school cabling system |
|
Wiring Scheme |
T568A &T568B |
|
Storage Temperature |
-40¡ãC to 70¡ãC |
|
Operating Temperature |
-10¡ãC to 60¡ãC |
