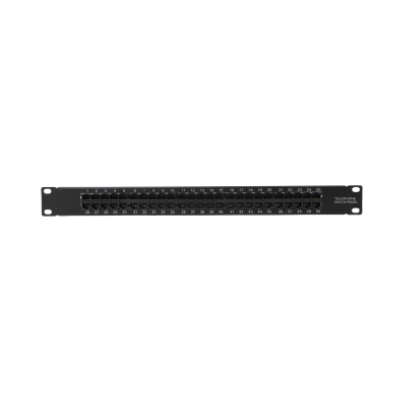

Cat3 50Port Patch Panel
Category：Cat3 6P4C
Port：50 port
Contact：PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U"/0.0762um to 50 U"/1.27um Gold plating on contact area
Color：Black
Termination：Dual IDC
Product Size：19 inch, 1U
IDC：PC UL94V-0, Accept 22-26 AWG Solid Wire
Standard：ISO/IEC 11801 and EIA/TIA-568Bstandards
|
Panel fitting Type |
Rack mountable |
|
Panel Width |
483mm (19”) |
|
Panel Height |
1U 44.45mm Max. |
|
Panel Depth |
25 & 50 port 122mm Nom.. |
|
Material |
Black electrostatic powder-coated corrosion-resistant steel |
|
Outlet Style |
RJ11 or RJ12 |
|
IDC |
Dual IDC (LSA or 110) |
|
Color |
Black |
