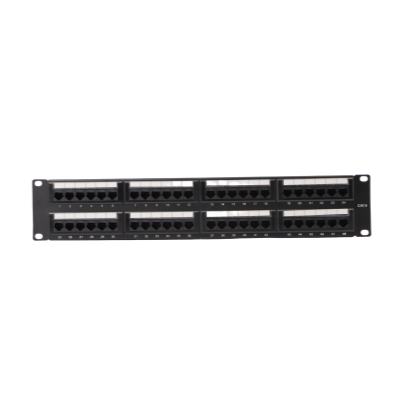

UTP 48Port Cat6 Patch Panel
l Organized Cable Management: Clean, organized cable management with mountable support bar and cable ties. Connects 48 RJ-45 ports to a network¡.Ideal for Internet, Fast Ethernet and Gigabit Ethernet networking application
l Reliable Cable Terminations: Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
l 19 inch Rackmount Compliant: Compatible with both 110 and Krone punch-down tools & occupies 2U rack height¡.Meets 19 inch rackmount standards. Compliant with the UL/ANSI/TIA/EIA 568 B.2-1 standard.
l Supports 22 to 26 AWG Wires: Supports 22 to 26 AWG stranded and solid wire. For use with unshielded twisted pair (UTP) Cat6 network cable
l Lifetime Mfg Warranty: Lifetime manufacturer warranty. Package includes 48 Port Patch Panel, Mountable support bar, Installation hardware (screws, nuts, gaskets and cable ties: four of each), Quick Installation Guide
1.19" 2U UTP 48Port CAT6 Krone IDC patch panel
2.Operation temperature:-40¡ãC to 60¡ãC, Relative
humidity:85%(30¡ãC), Air pressure:70-106Kpa
3.Complete metalation and reed construction
4.Suitable for 22AWG/23AWG/24AWG/26AWG solid wires
5. Color: black
6.Labelling fields:1-24
Features:
1.Front Panel: 1.5mm thickmness metal
panel(SPCC), painting on surface
2.Metallic Frame: 1.5mm thickness
3. Housing material: ABS or PC, UL94-V0 or UL94-V2
4. Meet or exceed the current T568A and T568B standard
5. Termination: Dual IDC, 110 IDC, Krone IDC
6. Panel frame: black or Ivory electrostatic powder-coated steel
7. IDC contact material: phosphor brone with tin plating over nickel
8. contact material: phosphor brone with gold plating over nickel
9. Punching duration:¡Ý250 times
10. Inserting duration:¡Ý750 times
11. Dielectric withstand voltage: 1000V AC RMS, 60Hz 1min
12. Insulation Resistance: 500M-ohm
13.High reliability and superior performance
