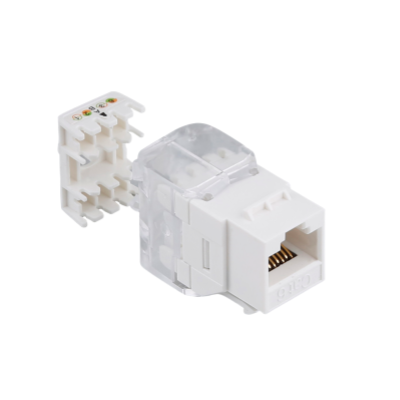

C6 Toolless Keystone Jack
l Self-terminating, no tool required: This toolless UTP CAT6 keystone Jack is a female RJ45 connector for networking;The cable conductors can be terminated by a 180 Degree snap-fit cap being pressed into place, designed to smoothly snap into most of the standard keystone applications
l Housing Materials: Made with 50¦Ì gold plated connector and full copper conductor, Prevent the corrosion over time; ABS case for fire resistance; Features a dust-proof shutter to ensure signal transmission
l Features: Cat 6 performance to future-proof your network|Backwards compatible to 10/100/1000 Mbps Ethernet CAT5 CAT5E CAT6. Complies with the ANSI/TIA/EIA 568-C.2 standard; labeled for T568A and T568B wiring scheme next to wire clips; 110 or Krone type termination are both supportive; It accepts 22 to 26 AWG solid Ethernet Patch Cords
l Applications: The Jack is compatible with a wide range of patch panels, surface mount boxes, or wall plates (face plates). It is quite versatile that can be mounted with different type of keystones on a same plate
l UL/CE Listed RJ45 CAT6 Keystone Module Jack, which 100% passed the FLUKE test
l For use with blank keystone patch panel, wall plates and surface wall mount box.
l These keystone jacks are Perfect for building up your 10 Gbps reliable cabling system.
l Tool-less design with T568A and T568B color-coded labeling for easy cable termination.
l Suitable for applications that use 23-26 AWG ethernet cables
l 100BASE-TX Fast Ethernet, 10BASE-T Ethernet applications
l ATM-25/ATM-51/ATM-155 network connections
l 100VG-AnyLan network connections
l TR-4/TR-16 Active/TR16 Passive network connections
