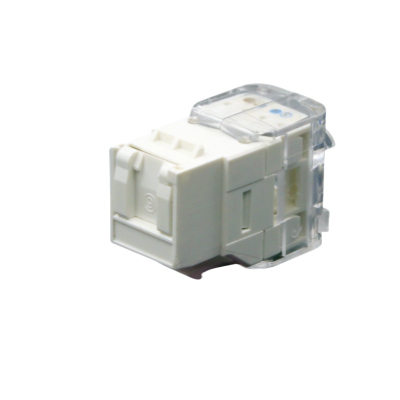

C6 Toolless Keystone Jack With Dust Cover
l Self-terminating, no tool required: This toolless UTP CAT6 keystone Jack With Dust Cover is a female RJ45 connector for networking;The cable conductors can be terminated by a 180 Degree snap-fit cap being pressed into place, designed to smoothly snap into most of the standard keystone applications
l Housing Materials: Made with 50¦Ì gold plated connector and full copper conductor, Prevent the corrosion over time; ABS case for fire resistance; Features a dust-proof shutter to ensure signal transmission
l Features: Cat 6 performance to future-proof your network|Backwards compatible to 10/100/1000 Mbps Ethernet CAT5 CAT5E CAT6. Complies with the ANSI/TIA/EIA 568-C.2 standard; labeled for T568A and T568B wiring scheme next to wire clips; 110 or Krone type termination are both supportive; It accepts 22 to 26 AWG solid Ethernet Patch Cords
l Applications: The Jack is compatible with a wide range of patch panels, surface mount boxes, or wall plates (face plates). It is quite versatile that can be mounted with different type of keystones on a same plate
l UL/CE Listed RJ45 CAT6 Keystone Module Jack, which 100% passed the FLUKE test
For use with blank keystone patch panel, wall plates and surface wall mount box.
These keystone jacks are Perfect for building up your 10 Gbps reliable cabling system.
Tool-less design with T568A and T568B color-coded labeling for easy cable termination.
l Suitable for applications that use 23-26 AWG ethernet cables
l 100BASE-TX Fast Ethernet, 10BASE-T Ethernet applications
l ATM-25/ATM-51/ATM-155 network connections
l 100VG-AnyLan network connections
l TR-4/TR-16 Active/TR16 Passive network connections
