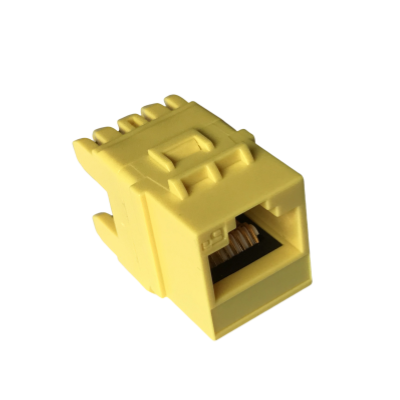

Cat6A Keystone Jack
Impact design suitable for keystone panel and faceplate/wall box
Contact material : Phosphor Bronze with 15u" gold-plated
IDC terminal : Phosphor Bronze with Nickel plated - Accepts 110 or Krone punch tools
Includes IDC Caps to protect the wires after installation
Accepts solid or stranded cables diameter AWG23-AWG26
Plastics : PC/ABS, 94V-2, ROHS compliant
Repeatable install times >250 times, Mating cycles with plug >750 times
1. 3-50U''gold plated contacts
2. For use with unshielded twisted pair (UTP) LAN cable
3. RJ45 ethernat cable performance is in compliance with ANSI/TIA/EIA 568B.2-1 standard
4. Lifetime warranty
5. Plastic housing
6. EIA/TIA approved
7. 568 A/B color coded
8. Straight-through wiring
9. Operating temperature: -40¡ã to 80¡ãC (-40¡ã to 176¡ãF)
