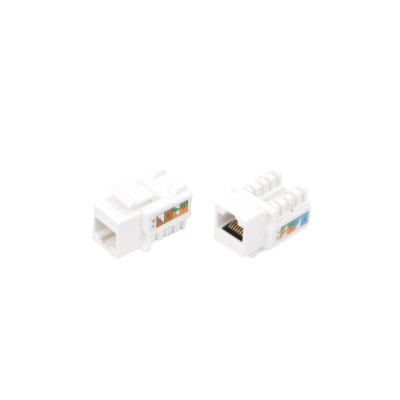

UTP Cat6 Keystone Jack

1.Category-6 (Cat6) Keystone Insert Jack

2.Easy connection to network cables

3.To be used with keystone wall plate or panel

4.Compatible with both T568A and T568B wiring patterns

5.Compatible with 23 or 24 AWG Solid Wires

Specification :
1.Cat6 keystone jack
2.Meet TIA/EIA-568-A and TIA/EIA-568-B Category6 requirements
3.Meet TIA/EIA TSB-40
4.Meet ISO/IEC Generic Cabling Standard 11801
5.Meet CENELEC Generic Cabling Standard EN50173
6.Angle: 90 Degree
7.Termination: Dual Type

Environment :
1.Storge: -40~ 85°c
2.Operation: 0~70°c
3.Housing Material: PBT
Machanical :
1.Panel Fram: Carbon Steel, Powder Coating in black color
2.Contact Material: PC
3.Contact: PC , 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
4.RJ45 Jack Life 750 times MIN.
5.Insertion Life: ≥ 1000 Mating Cycles
6.IDC: PC , Accept 22-26 AWG Solid Wire.
7.PCB: FR4 1.6mm(0.04") thickness, 2 layers
