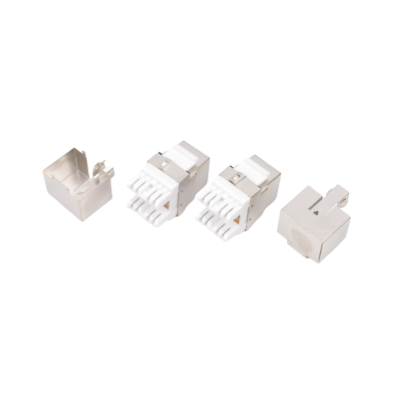

STP Cat6 keystone jack
The STP CAT6 keystone jack were designed with the user in mind, complete with the T568A/B wiring guide for each jack. To make sure durability they are made of Phosphor bronze for IDC contacts, Gold plated,UL94V-0 plastic housing. Our keystone jacks were engineered to simplify the termination helping you save time and money with features like easy to read wiring labels and 110 IDC termination.
Housing:High temperature thermoplastic.
Contract:Phosphor bronze,phosphor bronze with 3 to 50 u"gold plate
Available in Cat 5e or Cat6,T568 A, T568 B wiring.meeting every cabling requirement.
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6mm
Easy to be terminated Low attenuation loss and high return loss.
High reliability and superior performance
Specifications:
ELECTRICAL:
1. Voltage rating: 125 VAC RMS
2. Current rating: 1.5 AMP
3. Contact resistance: 100 Milliohms MAX
4. Insulation resistance: 1000 Megohms MIN @ 500 VDC
5. Dielectric strength: 750 VAC RMS 60Hz, 1MIN
ENVIRONMENTAL:
1. Storage: -40¡ã TO +85¡ã
2. Operation: 0¡ã TO 70¡ã
Conform to TIA/EIA 568B Category 5e
Mates with modular plug conforming to FCC part 68, Subpart F.
MECHANICAL:
1. Housing material: PC UL94V-0
2. Inser material: Flame retardancy ABS UL94V-0
3. PCB material: FR-4 Thickness: 1.6mm
4. Contact material: Phosphor bronze stamp PIN T=0.35mm
5. IDC Contact material: Phosphor bronze T=0.50mm with nickel plating
6. Wire: AWG 24-26
Features:
1) It meets the transmission standard of T568A Cate5e, as well asT568A and T568B linear ordering. It can be applies to the connection of communication sockets between devices and working area
2) Contact reed is nickel covered with stannum, with the conduct diameters ranging between 0.4mm and 0.6mm, and the connection life is more than 200 times
3) 8-pole contact point is 50¦Ì(inch) gold-plated, with 750 times insertion and pull
4) Dielectric strength: DC 1,000V (AC 750V), 1 minute, no spark-over and flying arc
5) Compact shape, general linear ordering is marked on module clearly, so it easy to finish connection correctly and rapidly
6) The locker cap makes sure the all wires are connected firmly
