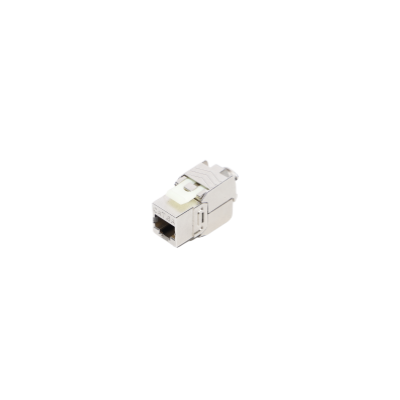

STP Cat6A Keystone Jack
l Shielded metal RJ45 Cat6A Keystone Jacks are designed to snap into wall plates, patch panels, and surface connection boxes for quick, seamless deployment with standard sized keystone ports.
l Superior construction combines a one piece metal keystone with an integrated silencing cylinder to suppress EMI/RFI, NEXT, and AXT; Stickers on the inside prevent accidental contact with the metal housing.
l 180 degree easy termination jack supports impact tool, or crimp tool termination; this design provides easy access and termination.
l IDC modules can be wired for T568A or T568B wiring. Supports 23 to 26 AWG solid or stranded wire; Cat6A connector is backwards compatible with Cat 6 and Cat 5e bulk cable.
l Seamless metal construction with gold-plated contacts provide superior Cat 6A performance up to 10 Gigabit.
Material:
1. Housing:Zinc alloy with Nickel plated.
2. IDC:
2-1 Housing:PC,UL 94V-0.
2-2 Contact:Phosphor Bronze with Nickel plated.
3,IDC CAP:PC,UL 94V-0
4,RJ45 Jack Contact:
4-1 Contact Bracket:PC,UL 94V-0
4-2 Contact:phosphor Bronze,with 6U-50U Gold plated on plug contact area.
Performance:
T568A&T568B wiring sticker on IDC.
Insertion force:20N max
Retention Strength:7KG between jack and plug.
Operating temperature:-10¡æto 60¡æ
Life£¨mating cycles):
Jack:750 cycles min.
IDC:300 cycles min,suitable for 23-26AWG wire.
Quality Construction
Gold-plated contacts, providing more reliable connections.
Industry specifications for shielding effectiveness, durable and corrosion resistance.
Easy to Use
l Tool-less design with convenient wire separation for easy installation.
l Color-coded labeling for T568A and T568B wiring schemes.
l Shielded Cat6 Applications
l Fit standard keystone jack slot.
l Terminate in a shielded patch panel.
l Applied to LAN work area, data communication, integrated wiring and etc.
