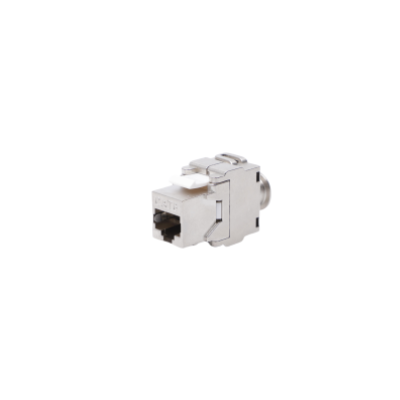

STP CAT6 Keystone Jack
1. RJ45 Shielded Keystone jacks fit a standard wall plate or patch panel with a keystone blank outlet outdoor or indoor, supports 22 to 26 AWG solid or stranded wire, compatible with cat6a/cat6/cat5e/cat5 ethernet sftp/ftp/utp cables.
2.180 Degree Easy Termination Jack supports tool-free, impact tool, or crimp tool termination; 180 degree wide-angle, hinged design provides easy access and termination; Dual IDC modules have universal T568-A or T568-B labels and accept 110 or Krone tool termination kit.
3.Superior Construction combines a one-piece metal keystone with an integrated silencing cylinder to suppress EMI/RFI, NEXT, and AXT; Stickers on the inside prevent accidental contact with the metal housing; IDC module covers to assist with cable strain relief; Snap-in retaining clip ensures a secure connection. Plug in a Cat6 patch cable to connect.
Material:
1. Housing:Zinc alloy with Nickel plated.
2. IDC:
2-1 Housing:PC,UL 94V-0.
2-2 Contact:Phosphor Bronze with Nickel plated.
3,IDC CAP:PC,UL 94V-0
4,RJ45 Jack Contact:
4-1 Contact Bracket:PC,UL 94V-0
4-2 Contact:phosphor Bronze,with 6U-50U Gold plated on plug contact area.
Performance:
T568A&T568B wiring sticker on IDC.
Insertion force:20N max
Retention Strength:7KG between jack and plug.
Operating temperature:-10¡æto 60¡æ
Life£¨mating cycles):
Jack:750 cycles min.
IDC:300 cycles min,suitable for 23-26AWG wire.
Quality Construction
Gold-plated contacts, providing more reliable connections.
Industry specifications for shielding effectiveness, durable and corrosion resistance.
Easy to Use
l Tool-less design with convenient wire separation for easy installation.
l Color-coded labeling for T568A and T568B wiring schemes.
l Shielded Cat6 Applications
l Fit standard keystone jack slot.
l Terminate in a shielded patch panel.
l Applied to LAN work area, data communication, integrated wiring and etc.
